Stepped TV stand: free plan and cut list
Two interlocking stepped units in thick board, open on both sides. The plan has the 3D model, every part with its size, the cutting plan and the assembly guide. Open it in Fabivo to change the size; the parts and the cuts follow.
The photo
The plan- Size (W × H × D)
- 1,850 × 560 × 390 mm · 72.8 × 22 × 15.4 in
- Parts
- 14 boards
- Board
- 30 mm particleboard
- Sheets
- 2 sheets of 2440 × 1220 mm
About this piece
Two stepped units in 30 mm board form the low, offset outline in the photo. The model has open compartments and no back. Each unit is a separate module, so you can adjust their placement in the modeler. Check the space between modules against your TV or equipment before you build.
Cut list
14 parts. Sizes in millimetres are the finished board sizes the model gives; in the app you can switch to inches and add edge banding.
| Part | Qty | Length | Width | Thickness |
|---|---|---|---|---|
| Shelf | 2 | 1,200 | 390 | 30 |
| Shelf | 2 | 1,170 | 390 | 30 |
| Divider | 2 | 500 | 390 | 30 |
| Shelf | 2 | 493.8 | 390 | 30 |
| Divider | 2 | 390 | 280 | 30 |
| Divider | 4 | 390 | 220 | 30 |
Cutting plan

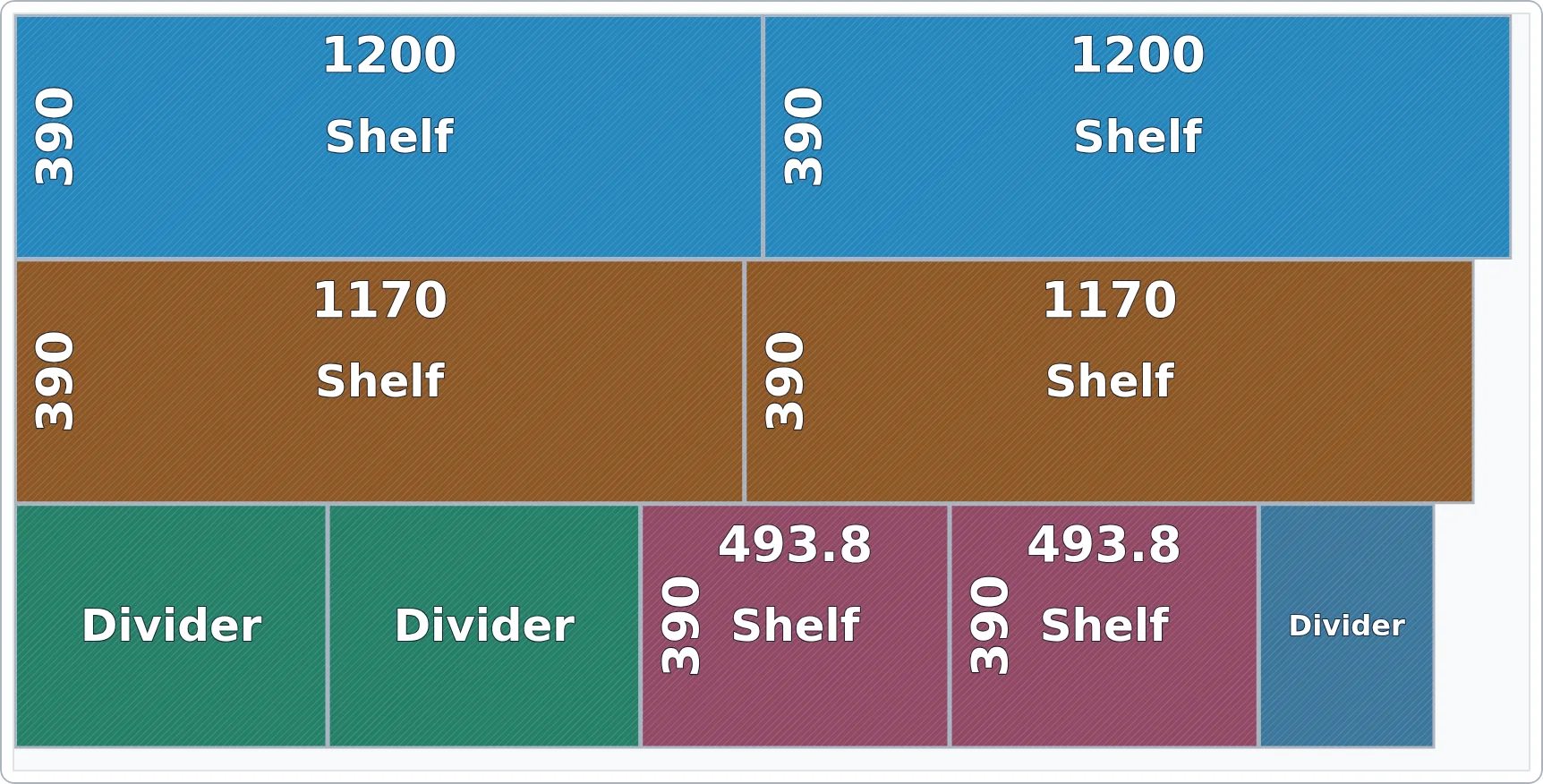

With the app’s default settings the parts fit on 2 sheets of 2440 × 1220 mm, with 46.5% waste and 18 cuts. The plan below is sheet 1; the app shows each sheet and the cut order, one pass at a time.
Hardware and assembly
The app lists the hardware from the model and builds a 14-step assembly guide with a diagram per step:
- Confirmat screw 60 mm × 36
Make it fit your space
Open the plan and change the width, height or depth in the modeler. You can also ask the AI assistant, for example “make it 30 cm narrower” or “add a back panel”. Check the model after the change and generate the cut list again.
Set your real sheet size, thickness and saw kerf in the Plan step before you buy material. The optimizer then tells you how many sheets you need and what is left over.
Where this plan comes from
We gave the photo above to Fabivo’s AI assistant and asked it to build the furniture. It counted the rows and openings, estimated the sizes from the proportions, and wrote the model. Fabivo made the cut list and the cutting plan from that model.
Sizes read from a photo are estimates, not measurements of the original product. These are editable starting models, not load-rated construction plans. Check sizes, shelf spans, joints and wall fixings before cutting. Try your own photo in the AI furniture designer.
